At a glance

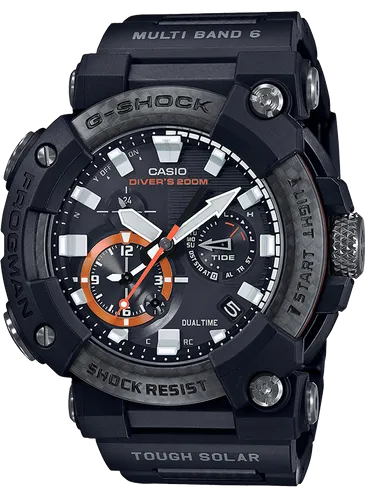

The composite band GWFA1000XC-1A is the latest addition to the GWFA1000 Series, the first analog models for the FROGMAN Series of G-SHOCK MASTER OF G ISO 200m diver-level water-resistant watches.

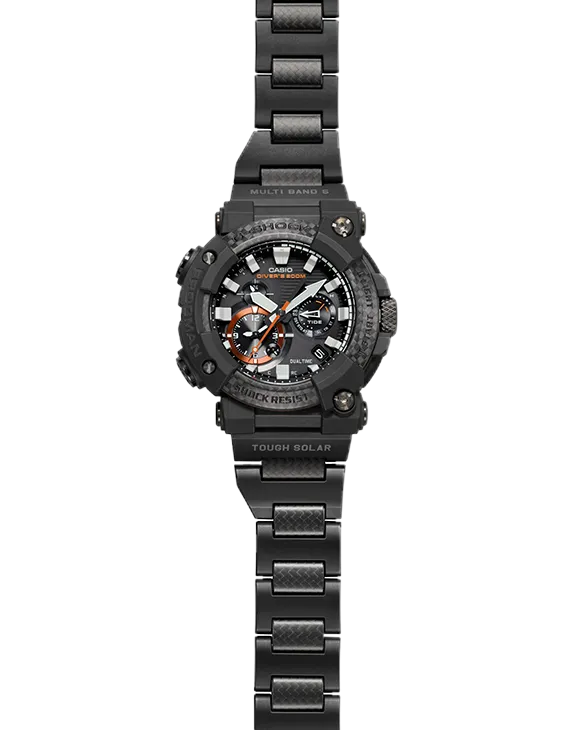

This model is the first of the FROGMAN lineup to come with a composite band with an extension mechanism on the buckle that allows it to be easily worn over a wet suit while diving. During normal wear, the mechanism can be folded up for a normal-length band. The band of the GWF-A1000XC-1A is made using carbon-reinforced resin, making the band both strong and lightweight.

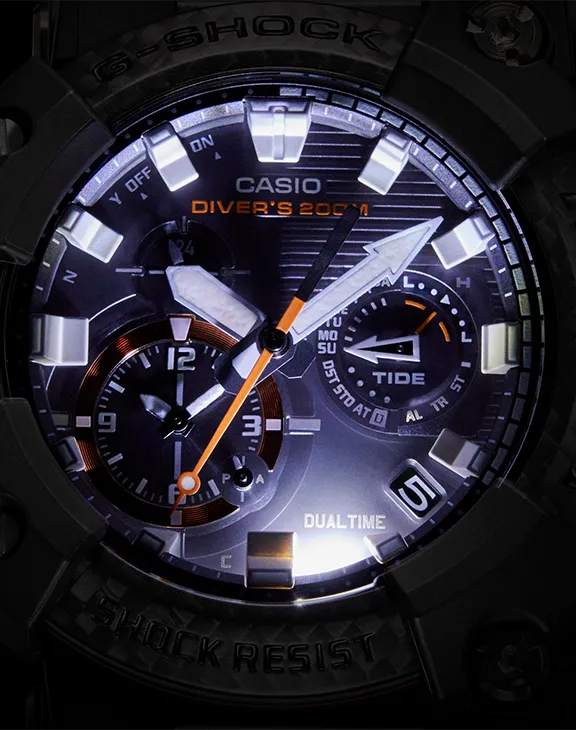

The laminated carbon bezel of the GWF-A1000XC has a single orange layer for a distinctive look. This ties in with orange dial accents that unify the overall design scheme. The base model for this new addition is the GWFA1000, which introduced an analog face while maintaining the asymmetrical face design that has been part of this series since its inception in 1993. Large, luminescent hour and minute hands improve readability, and the face provides an intuitive indication of measurement information.

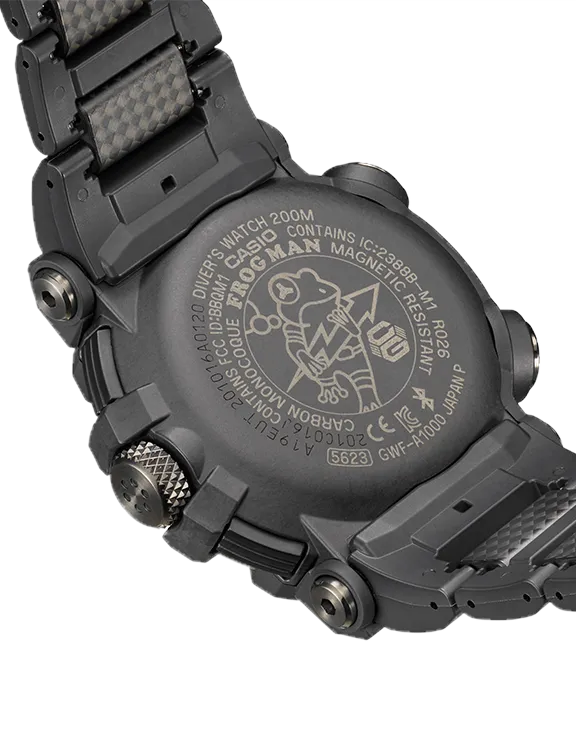

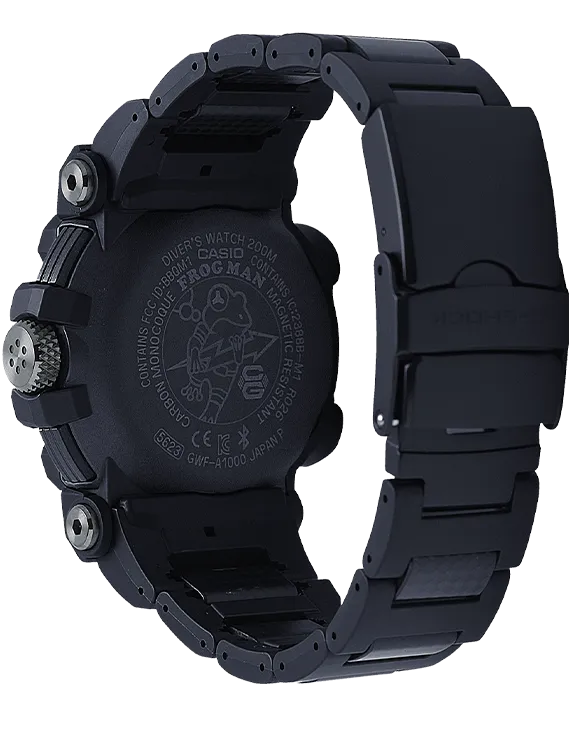

The monologue structure of these models incorporates the case and back cover into a single piece.
Specifications
- Case / bezel material: Carbon / Stainless steel
- One-touch 3-fold Clasp
- Carbon Composite Band
- Neobrite
- Spherical Glass
- Screw Lock Crown
- Carbon Core Guard structure
- Carbon monocoque case
- Magnetic Resistant
- Shock Resistant
- Sapphire crystal with glare-resistant coating
- Black ion plated case
- ISO 200 meters Water Resistance
- LED light (Super illuminator)
- Afterglow
- Tough Solar (Solar powered)
- Time calibration signal reception
- Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
- *5 times a day for the Chinese calibration signal
- Manual receive
- The latest signal reception results
- Time Calibration Signals
- Station name: DCF77 (Mainflingen, Germany)
- Frequency: 77.5 kHz
- Station name: MSF (Anthorn, England)
- Frequency: 60.0 kHz
- Station name: WWVB (Fort Collins, United States)
- Frequency: 60.0 kHz
- Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
- Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
- Station name: BPC (Shangqiu City, Henan Province, China)
- Frequency: 68.5 kHz
- Diving mode
- Dive time: 1 second increments, up to 1:59'59
- Surface time measurement: up to 24 hours
- Log data: up to 30 records
- Mobile link (Automatic connection, wireless linking using Bluetooth®)
- The auto hand home position correction
- Dual time
- 27 time zones, Home time swapping, auto summer time (DST) switching
- 1-second stopwatch
- Measuring capacity: 23:59'59
- Countdown timer
- Measuring unit: 1 second
- Countdown range: 24 hours
- Countdown start time setting range: 1 minute to 24 hours (1-second increments)
- Daily alarm
- Power Saving (hands stop to save power when the watch is left in the dark)
- Hand shift feature (Hands move out of the way to provide an unobstructed view of indial)
- Full auto-calendar (to year 2099)
- Date display
- Day indicator
- Regular timekeeping
- Analog: 3 hands (hour, minute (hand moves every 5 seconds), second), 3 dials (dual time hour and minute, dual time 24 hour, day)
- Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)
- Approx. battery operating time:
- 5 months on rechargeable battery (operation period with normal use without exposure to light after charge)
- 30 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
- Size of case : 56.7×53.3×19.7mm
- Total weight : 140g
